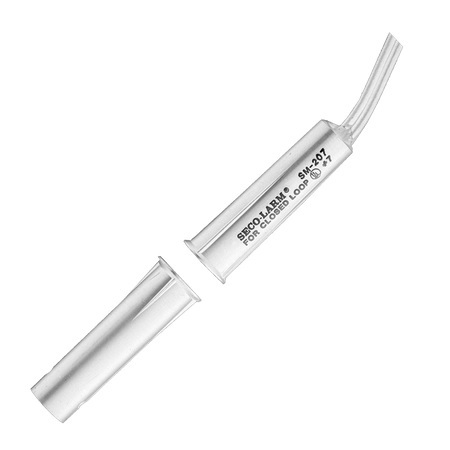

SM-207Q/W-10 Seco-Larm 3/8" Press-Fit Mount N.C. Magnetic Contact w/ Pre-Wired Leads - White - Pack of 10

SKU: SM-207Q/W-10

Used for protecting sliding doors and windows where space is limited
3/ 8" Press-fit mount
15" (38cm) wire leads
Contact reed switch is SPST, deactivated rhodium on gold under-plating for a longer expected life
Unique glue/epoxy compound protects reed switch
For closed loop circuits
1" (25mm) Gap
Lifetime limited warranty

MPN: SM-207Q/W-10

MSRP Price: $71.00

Price: $71.00

New to DWG? - Sign Up for immediate access to dealer pricing and benefits.

Already a DWG Customer? - Sign In to view pricing.

Product Details

Specifications

Model Number - SM-207Q/BR
Loop type - Closed loop
Operation gap - 1"(25mm)
Color - White
Leads - Pre-wired 15", #22
Material
- Case - High-impact ABS plastic / epoxy compound
- Contact - Deactivated rhodium on gold under-plating
Contact rating
- 0.1A@100VDC (max)
- 1.0A@10VDC (max)
- 10W (max)
Temperature - -15Â°~160Â°F (-25Â°~70Â°C)
Switch cycles - 50 Million (0.1mA@5VDC)
Switch dimensions - 13/8"x7/16"x3/8" (35x11x9mm)
Magnet dimensions - 13/8"x7/16"x3/8" (35x11x9mm)
Magnet - Alnico 5
