3992667 Potter RLY-5 Relay Expander

Features

• Mounts with included stacker bracket
• Provides 5 user configurable relays
• Contact Rating of 24VDC / 3.0a, 125 VaC / 3.0a (resistive)
• Maximum 31 RLY-5s per panel
• Maximum p-Link wire length of 6,500 feet
• product includes a 5 year warranty
• UUKL Listed for Smoke Control

Description

The RLY-5 is a relay expander for compatible Potter fire alarm control panels. The RLY-5 communicates with the control panel via the RS-485 (p-Link) communication bus providing 5 user configurable relay outputs programmable with the Potter Configuration Software.

Installation

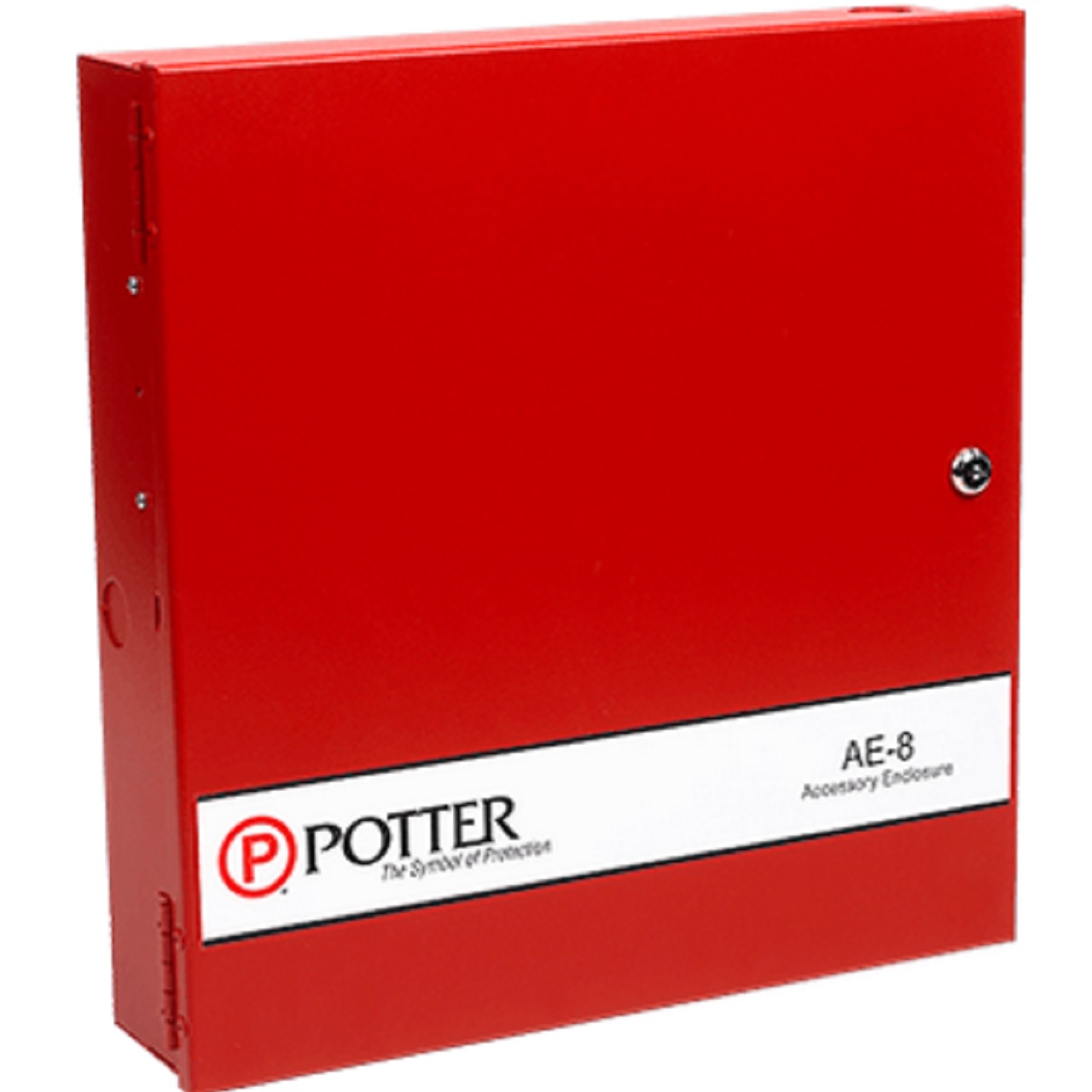

The RLY-5 is connected to a four wire RS-485 (p-Link) connection. each card is mounted to the exclusive Stacker Bracket for secure and accessible mounting. This connection is power limited and supervised. The RLY-5 can be installed in the ae-2, ae-8, and ae-14 accessory enclosures. The RLY-5 can also be installed inside the pSN-1000e Intelligent power Supply and larger control panel enclosures that include space for mounting stacker bracket modules.

Technical Specifications

• p-Link Current (24 VDC) - 35 ma (alarm), 25 ma (Standby)
• RLY pWR Current (16 VDC – 33 VDC) - 135 ma (alarm), 10 ma (Standby)
• Compatible panels - Ipa Series, aFC/aRC Series, pFC-4064, p-Series*, pFC-6000 addressable Series*
