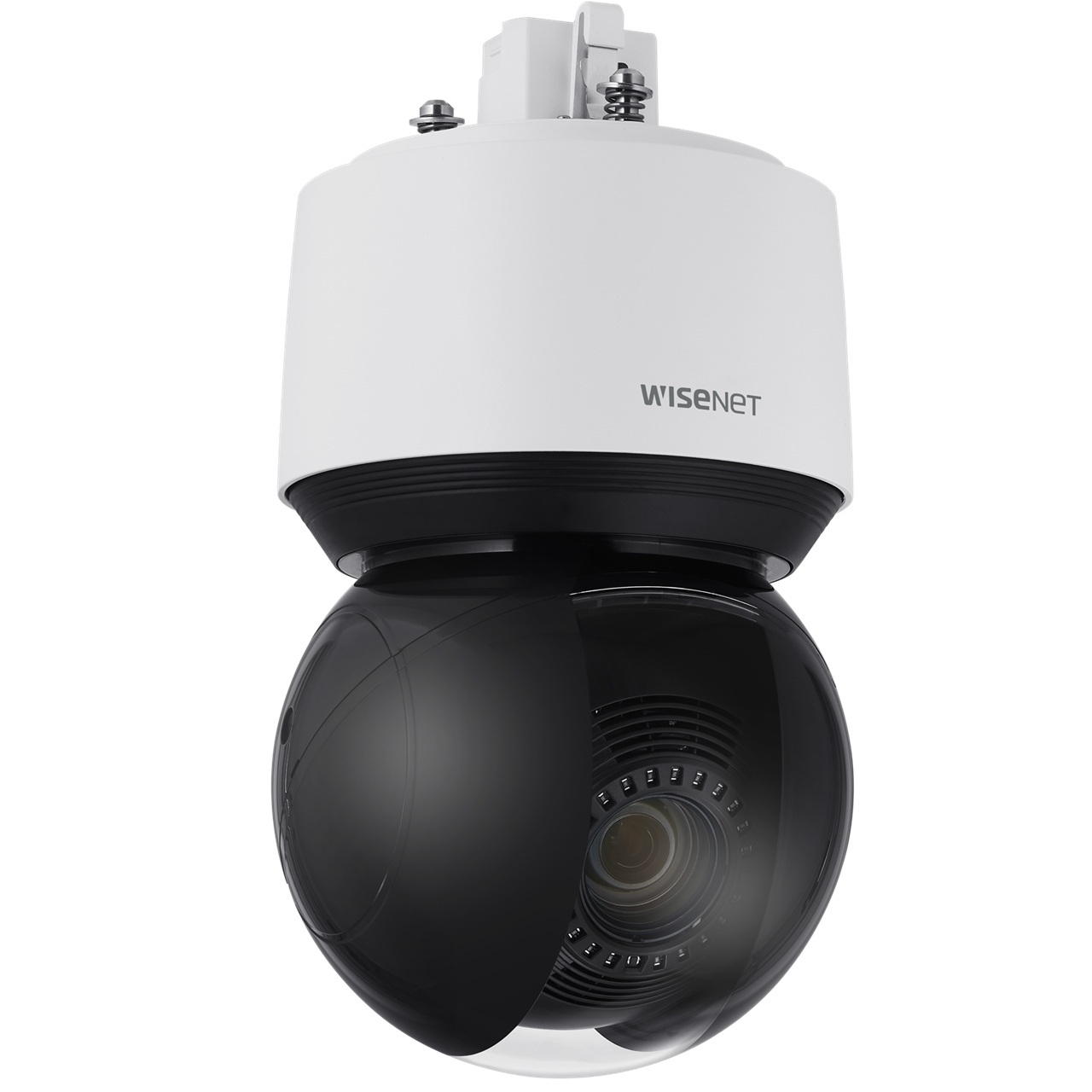

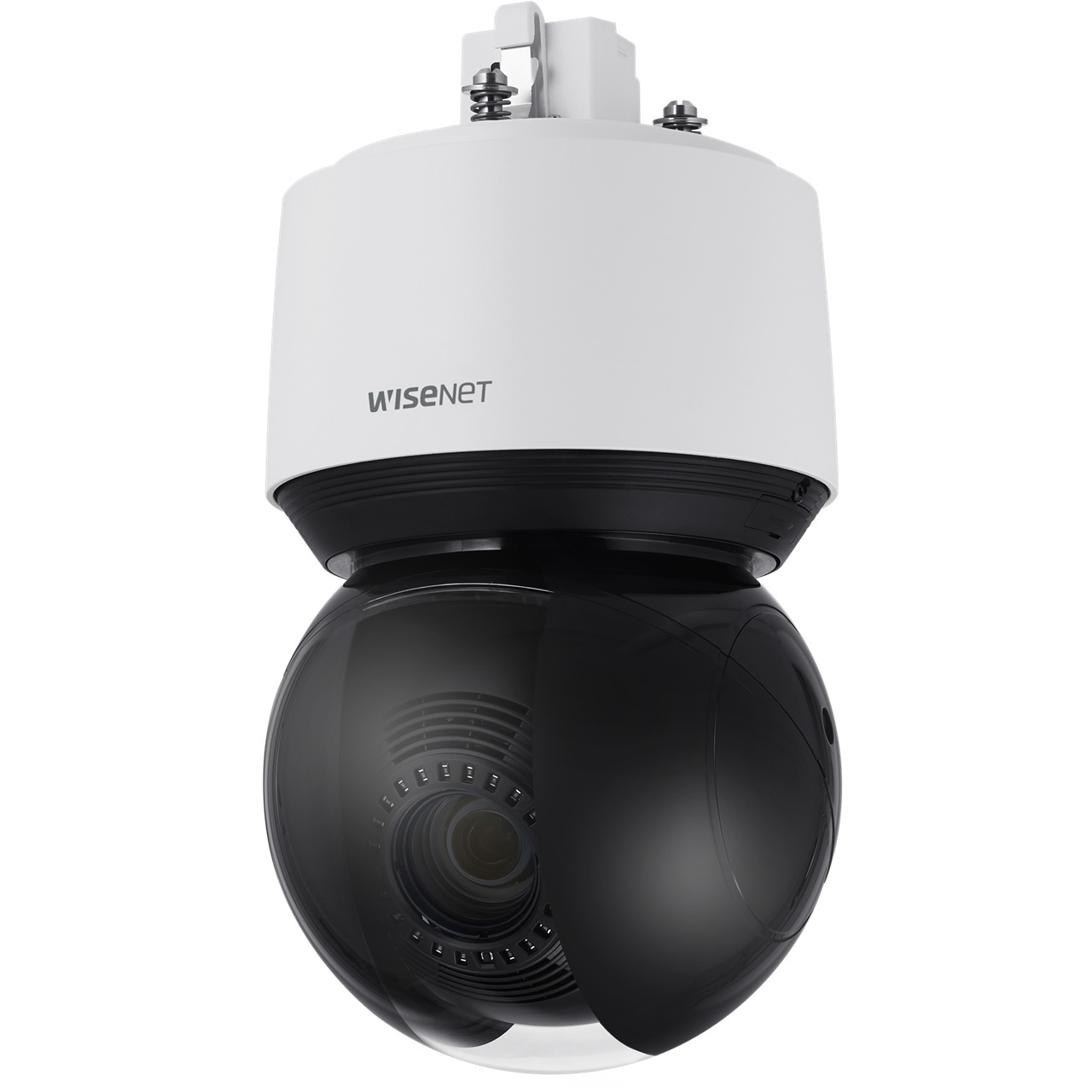

XNP-6400 Hanwha Vision X Series 4.25-170mm 40x Optical Zoom 60FPS @ 2MP Outdoor Day/Night WDR PTZ IP Security Camera PoE

Specifications

Video

• Imaging Device - 1/2.8" CMOS
• Resolution - 1920x1080, 1280x1024, 1280x960, 1280x720, 1024x768, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360, 320x240
• Max. Framerate - H.265/H.264: Max. 60fps/50fps(60Hz/50Hz) MJPEG: Max. 30fps
• Min. Illumination - Color: (1/30sec,30IRE) 0.05, BW: (1/30sec,30IRE)0.005

Lens

• Focal Length (Zoom Ratio) - 4.25~170mm(40x) zoom
• Optical Zoom - 40x (digital 32x)
• Max. Aperture Ratio - F1.6(Wide)~F4.95(Tele)
• Angular Field of View - H: 65.66°(Wide)~1.88°(Tele) / V: 39.4°(Wide)~1.09°(Tele)
• Min. Object Distance - 5m(16.4ft)
• Focus Control - Auto, Manual, Oneshot AF, Focus save
• Lens Type - DC auto iris

Pan / Tilt / Rotate

• Pan Range - 360° Endless/90°~-20°Tilt
• Pan Speed - Max. 700°/sec, Manual: 0.024°/sec~250°/sec
• Tilt Speed - Max. 500°/sec, Manual: 0.024°/sec~250°/sec
• Sequence - Preset(300ea), Swing, Group(6ea), Trace, Tour, Auto Run, Schedule
• Preset Accuracy - Up to ±0.1°, Pan/Tilt correction

Operational

• Camera Title - Displayed up to 85 characters
• Direction Indicator - Support
• Day & Night - Auto(ICR)
• Backlight Compensation - BLC, HCL, WDR, SSDR
• Wide Dynamic Range - (150dB)
• Digital Noise Reduction - SSNRâ…¤
• Digital Image Stabilization - Support(built-in gyro sensor)
• Defog - Support
• Motion Detection - 8ea, 8 Point Polygonal zones
• Privacy Masking - 32ea, 4point Quadrangle zones - Color: Gray/Green/Red/Blue/Black/White - Mosaic
• Gain Control - Low, Middle, High
• White Balance - ATW, AWC /Manual /Indoor /Outdoor
• Electronic Shutter Speed - Minimum / Maximum / Anti flicker (2~1/12,000sec)
• Video Rotation - Flip&Mirror

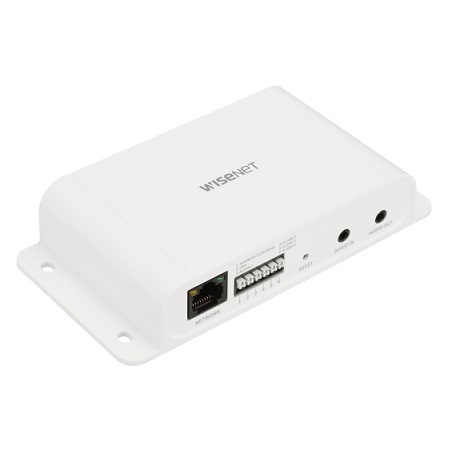

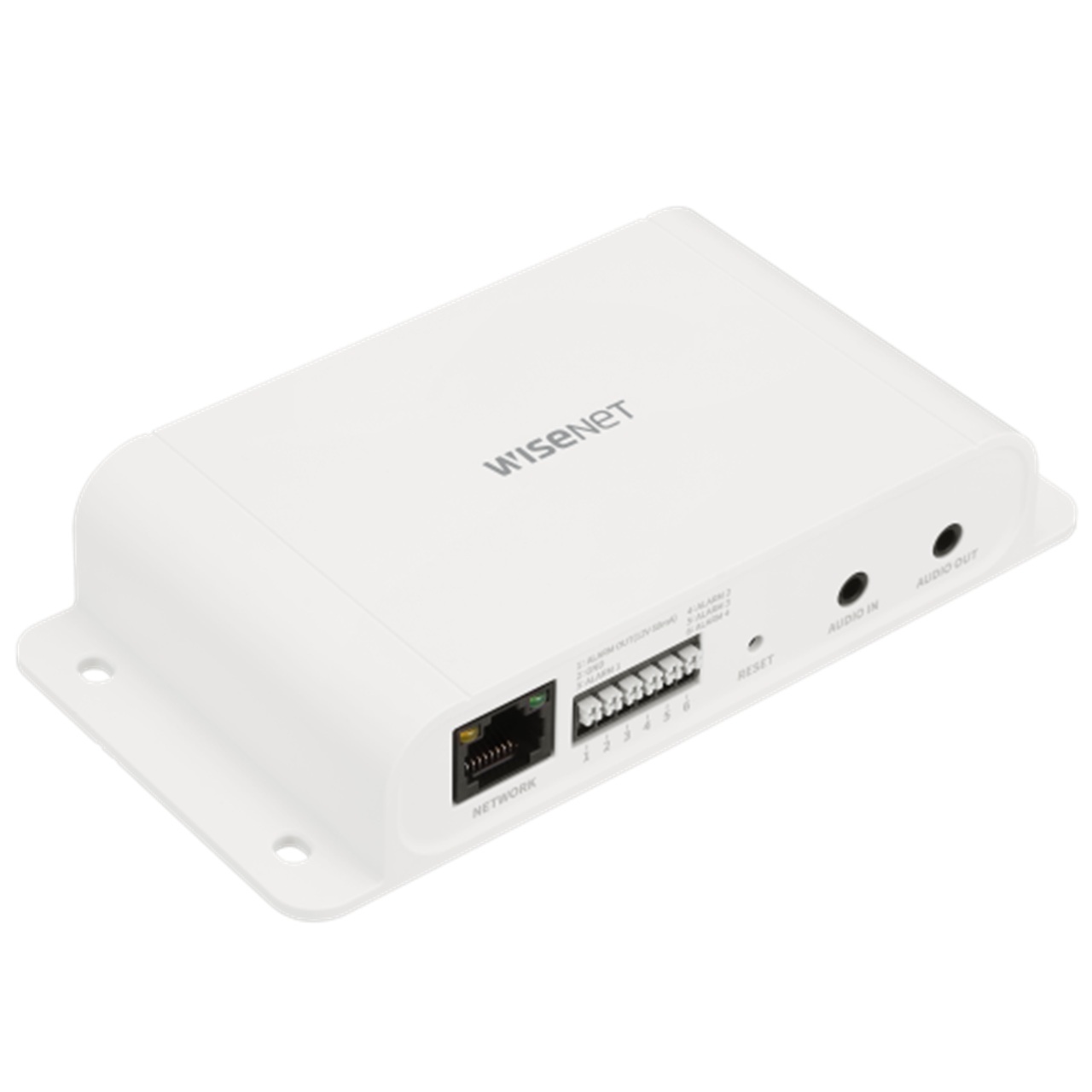

• Alarm Interface In/Out - Support alarm I/O via optional I/O box
• Alarm Triggers - Analytics, Network disconnect Alarm input
• Alarm Events - When alarm trigger occurred - File upload(image) : e-mail/FTP/SFTP, File upload(viseo Clip): FTP/SFTP, - Notification : e-mail - Recording : SD/SDHC/SDXC or NAS recording at event triggers Alarm output,- Handover(PTZ preset), send message by HTTP/HTTPS/TCP - Audio clip playback - MQTT: publication
• Audio In - Support via optional I/O box
• Audio Out - Support via optional I/O box
• Water Removal - Support(Spin dry, Lens heater)
• Auto Tracking - Support Object auto tracking(Person/Vehicle) Target lock tracking

Analytics

• Analytics Events - Motion detection, Tampering, Fog detection, Face detection, Audio detection, Sound classification, Shock detection, Virtual area(Lotering, Intrusion, Enter/Exit, Appear/Disappear), Virtual line(Crossing, Direction)

Network

• Ethernet - Metal shielded RJ-45(10/100BASE-T)
• Video Compression - H.265/H.264: Main/Baseline/High, MJPEG
• Smart Codec - Manual, WiseStreamâ…¡
• Bitrate Control - H.264/H.265: CBR or VBR MJPEG: VBR
• Streaming - Unicast(20 users) / Multicast Multiple streaming(Up to 10 profiles)
• Protocol - IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP/SFTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP, CDP, SRTP(TCP, UDP Unicast), NTCIP1205, MQTT
• Application Programming Interface - ONVIF Profile S/G/T SUNAPI(HTTP API) Hanwha Vision Open Platform
• Direct Cloud Connection - Support

Security

• OS / Firmware Protect - Encrypted Firmware, Secure boot, Signed Firmware
• User authentication - Digest Authenticaton, Prevent brute-force attack
• Network authentication - IEEE 802.1X(EAP-TLS, EAP-LEAP, EAP-PEAP, MSCHAPv2)
• Secure Communication - HTTPS, WSS(WebSocket Secure), SRTP
• Access Control - IP-based access control
• Data Protect - Encryption Credentials, Encrypt compress for live recording file export
• Audit - Access / System / Event Log management
• Device ID - Device certificate(Hanwha Vision Root CA)
• Secure Storage - HTPM(Hanwha trusted platform module), SDcard partition encrypt (AES-256)
• Security Certificate - CyberSecurity ssuarance program UL CAP(UL 2900-2-3 L2)

General

• Edge Storage - Micro SD/SDHC/SDXC 2slot 1TB (512GBx2)
• Memory - 4GB RAM, 512MB Flash

Environmental & Electrical

• Operating Temperature / Humidity - -40°C~+50°C(-40°F ~ +122°F) / 0~100% RH(condensing) +74°C(+165°F) (MAX) based on NEMA-TS 2(2.2.7) * Start up should be done at above -30°C Humidity control with AIR vent
• Storage Temperature / Humidity - -50°C ~ +60°C(-58°F ~ +140°F) / 0~90% RH (non-condensing)
• Input Voltage - PoE++(IEEE802.3at, Class4)
• Power Consumption - Typical 25W, Max 20W

Mechanical

• Color / Material - Body : White / Black / Aluminum PC Polycarbontate
• RAL Code - RAL9003 / RAL9005
• Product Dimensions / Weight - ø158x293.3mm(6.22x11.55") / 3200g(7.05lb)

DORI (EN62676-4 standard)

• Detect (25PPM/ 8PPF) - Wide: 59.5m(195.3ft) / Tele: 2340.4m(7678.4ft)
• Observe (63PPM/ 19PPF) - Wide: 23.8m(78.1ft) / Tele: 936.2m(3071.4ft)
• Recognize (125PPM/ 38PPF) - Wide: 11.9m(39.1ft) / Tele: 468.1m(1535.7ft)
• Identify (250PPM/ 76PPF) - Wide: 6.0m(19.5ft) / Tele: 234.0m(767.8ft)
